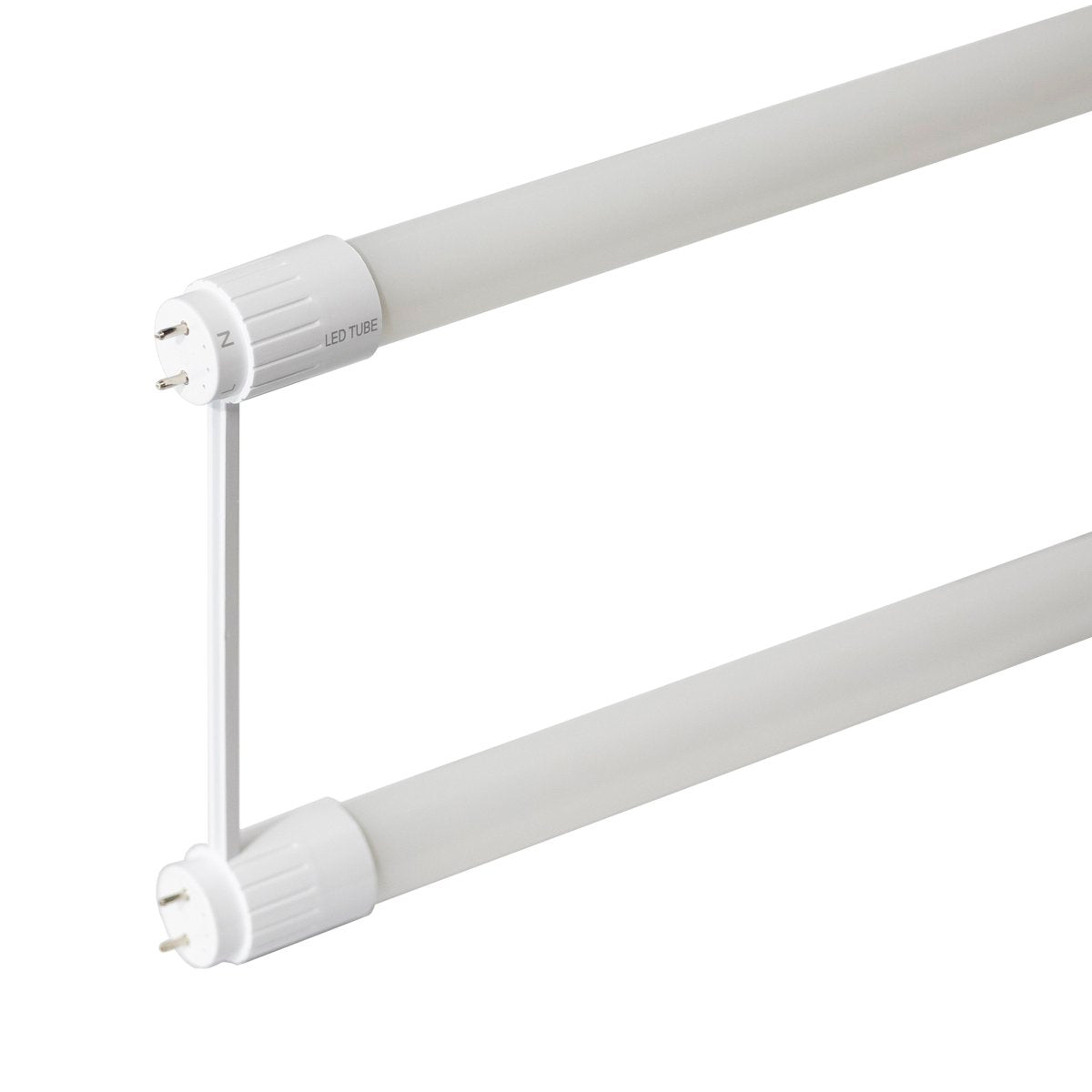

TRIPLE-PLAY SERIES LED U6 Tube – 2FT, 15W, 1700 Lumens, Hybrid Type A+B, NSF Rated, Single/Double-Ended (120-277V)

Premium 2FT U6 U-Bend LED Replacement Lamp – 125 lm/W, Type A+B Hybrid, Plug & Play or Bypass Ballast, NSF Rated Shatterproof Lens

The TRIPLE-PLAY SERIES PV-6UB-15WAB1 is a high-efficiency 2-foot, 15W LED U6 U-Bend replacement tube delivering 1,700 lumens at 125 lm/W. Designed with Hybrid Type A+B compatibility, this lamp supports plug-and-play with existing ballasts or direct bypass (ballast removal) in single- or double-ended power installations, offering flexible retrofit options for commercial and industrial applications.

Engineered with a NSF Rated, anti-UV frosted PET-coated tempered glass lens, the tube provides shatter-resistant, glare-free light while preventing discoloration. Ideal for U-Bend troffer fixtures, it’s perfect for healthcare, food service, and manufacturing environments where safety and reliability are key.

The PV-6UB-15WAB1 operates on a wide voltage range (120-277V), functions with ON/OFF occupancy sensors, and maintains excellent performance in environments from -4°F to 104°F. Certified to UL, FCC, CE, and RoHS standards, this lamp is also eligible for energy efficiency rebates and backed by a 5-year / 50,000-hour warranty.

Specifications:

Electrical Data:

• Input Voltage: 120-277V

• Input Frequency: 50/60 Hz

• Wattage: 15W

• Power Factor: >0.9

• Driver Type: Type A+B (Hybrid – Ballast Compatible or Bypass)

• Installation: Single and Double-Ended

Lighting Performance:

• Lumen Output: 1,700 lm

• Efficacy: 125 lm/W

• CCT Options: 4000K, 5000K

• CRI: Ra ≥83

• Dimmable: No

• L70 Lifetime: 50,000 hours

Construction & Design:

• Length: 2-FT U6 U-Bend

• Lens: Frosted Tempered Glass with PET Coating (NSF Rated)

• Material: Glass with PET Safety Coating

• Color: White

Controls & Features:

• Occupancy Sensor Compatibility: Yes

• Shatterproof: Yes – NSF Rated

• Operating Temp: -4°F to 104°F (-20°C to 40°C)

Certifications & Warranty:

• Certifications: UL (US & Canada), FCC, CE, RoHS

• Rebate Eligible: Yes

• Warranty: 5 Years / 50,000 Hours
