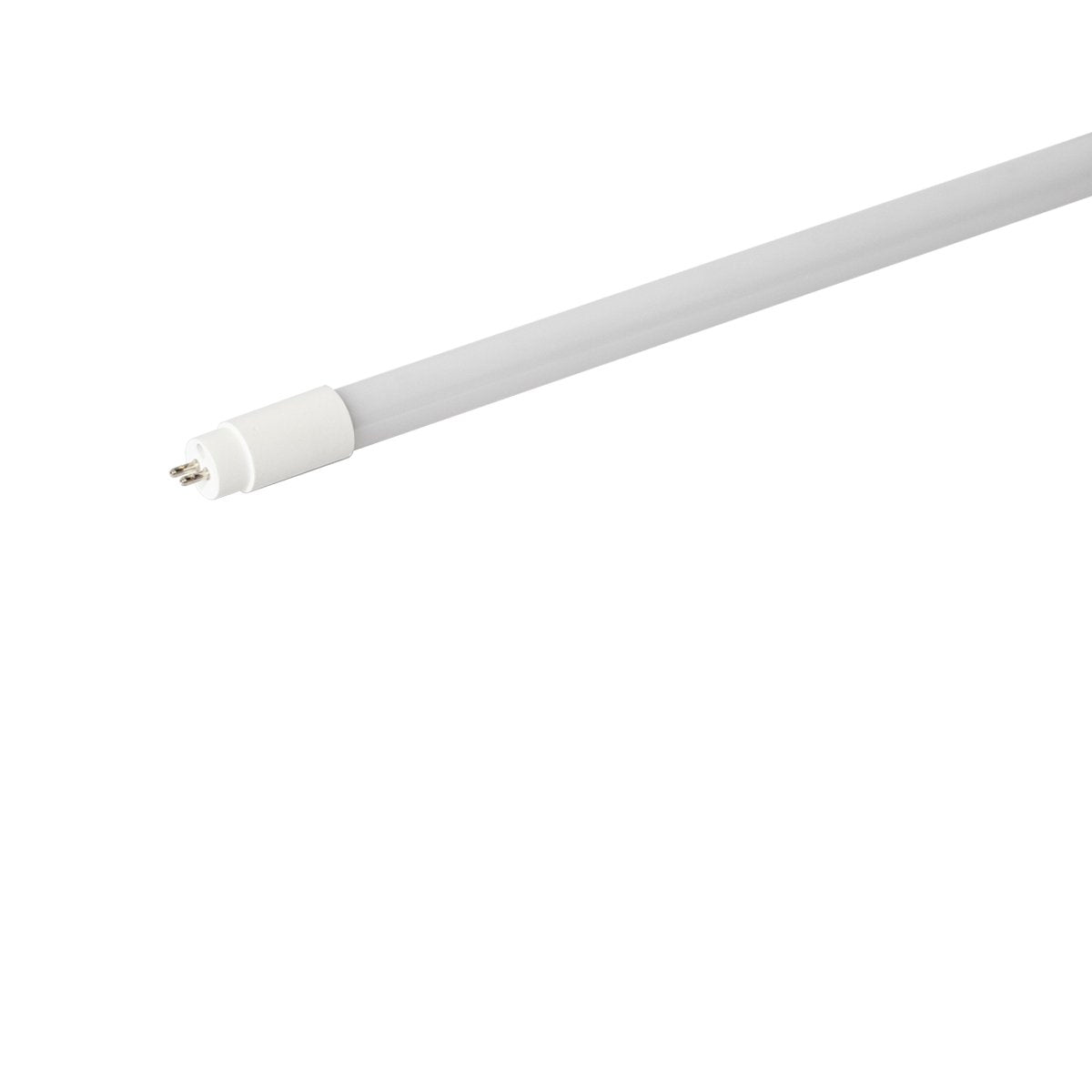

NSF SERIES LED T5 Tube – 4FT, 24W, 3200 Lumens, Type B, NSF Rated, Single/Double-Ended (120-277V)

Premium 4FT LED T5 Replacement Lamp – 133 lm/W, Type B Bypass, NSF Certified Shatterproof Lens, Direct Install with G5 Base

The NSF SERIES PVT5-4FT-24WB is a high-performance 4-foot, 24W LED T5 replacement tube, delivering 3,200 lumens at 133 lm/W. Designed with a Type B driver, this lamp supports single- and double-ended power configurations, allowing for direct wire (ballast bypass) installations into T5 luminaires.

Built with NSF Certified, anti-UV frosted PET-coated tempered glass, the lens provides shatter-resistant, even light output while preventing discoloration—ideal for applications in food processing, clean rooms, and industrial environments. The integrated internal LED driver simplifies installation with standard G5 end caps, supporting triple-play installation versatility.

Rated for -4°F to 113°F and compatible with ON/OFF occupancy sensors, the PVT5-4FT-24WB meets UL, FCC, CE, and RoHS standards, is eligible for utility rebates, and backed by a 5-year / 50,000-hour warranty.

Specifications:

Electrical Data:

• Input Voltage: 120-277V

• Input Frequency: 50/60 Hz

• Wattage: 24W

• Power Factor: >0.9

• THD: ≤20%

• Driver Type: Type B (Bypass Ballast)

• Installation: Single and Double-Ended

Lighting Performance:

• Lumen Output: 3,200 lm

• Efficacy: 133 lm/W

• CCT Options: 4000K, 5000K

• CRI: Ra ≥83

• Dimmable: No

• L70 Lifetime: 50,000 hours

Construction & Design:

• Size: 4-FT T5

• Base: G5

• Lens: NSF Rated PET Coated Tempered Glass

• Diffuser: Frosted

• Color: White

• Shatterproof: Yes – NSF Certified

• Operating Temp: -4°F to 113°F (-20°C to 45°C)

Controls & Features:

• Occupancy Sensor Compatibility: Yes

• Internal Driver: Yes

Certifications & Warranty:

• Certifications: UL (US & Canada), FCC, CE, RoHS

• Rebate Eligible: Yes

• Warranty: 5 Years / 50,000 Hours
