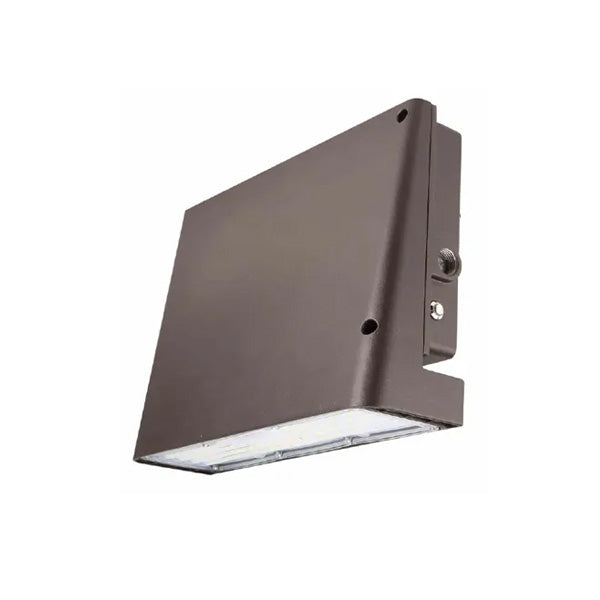

MWP15 SERIES LED Slim Full Cutoff Wall Pack – 65W, 9,685 Lumens, IP65, Optional Photocell & Emergency Backup (120-277V)

Compact Outdoor LED Wall Pack – 149 lm/W, Slim Full Cutoff Design, Wet Location Rated, Clear Ridged Lens, 5-Year Warranty

The MWP15 SERIES 65W LED Slim Full Cutoff Wall Pack delivers high-output, energy-efficient lighting in a compact and durable design. Generating 9,685 lumens at 149 lm/W, this wall-mounted luminaire is ideal for a wide range of exterior applications such as building facades, pedestrian walkways, courtyards, and security perimeters.

Constructed with corrosion-resistant die-cast aluminum housing and finished in a dark bronze anti-UV polyester coating, the MWP15 is engineered to withstand harsh outdoor conditions. It is IP65 Wet Location rated and vibration-tested to ANSI C136.31 3G standards, making it a robust choice for commercial and industrial environments.

Equipped with a clear ridged polycarbonate lens, this fixture ensures even light distribution while maintaining color stability over time. The MWP15 is available with optional integrated PIR photocell sensors for dusk-to-dawn control and 90-minute emergency battery backups, providing safety and reliability during power outages.

With UL, FCC, and RoHS certifications, and eligibility for utility rebates, this luminaire offers a compelling combination of performance and value. Backed by a 5-year / 50,000-hour warranty, it's a smart choice for long-term lighting solutions.

Specifications:

Electrical Data:

• Input Voltage: 120-277V

• Input Frequency: 50/60 Hz

• Wattage: 65W

• Power Factor: >0.9

• THD: ≤20%

• Operating Temperature: -40°F to 104°F (-40°C to 40°C)

• Dimmable: No

Lighting Performance:

• Lumen Output: 9,685 lm

• Efficacy: 149 lm/W

• CCT Options: 4000K, 5000K

• CRI: Ra ≥70

• L70 Lifetime: 50,000 hours

Construction & Design:

• Material: Die-Cast Aluminum with Anti-UV Polyester Coating

• Lens Type: Clear Ridged Polycarbonate

• Diffuser: Anti-UV, Clear

• Finish: Dark Bronze

• Mounting: Wall Mount

• Rating: IP65 Wet Location

• Vibration Rating: ANSI C136.31 (3G Rated)

Optional Features:

• Photocell Sensor: Integrated PIR Sensor (optional)

• Emergency Backup: 90-Minute Battery Backup (optional)

Certifications & Warranty:

• Certifications: UL (US & Canada), FCC, RoHS

• Rebate Eligible: Yes

• Warranty: 5 Years / 50,000 Hours
