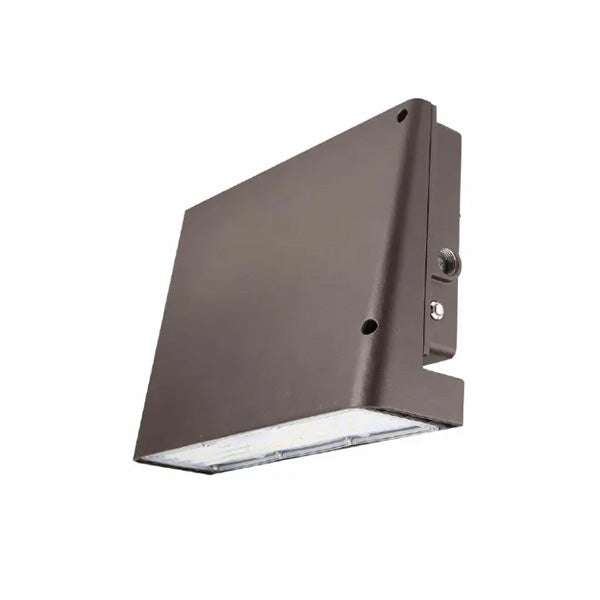

MWP15 SERIES LED Slim Full Cutoff Wall Pack – 135W, 19,980 Lumens, IP65, Optional Photocell & Emergency Backup (120-277V)

High-Output Outdoor LED Wall Pack – 148 lm/W, Wet Location Rated, Slim Design with Clear Ridged Lens, Dark Bronze Finish

The MWP15 SERIES 135W LED Slim Full Cutoff Wall Pack is a premium, high-lumen outdoor lighting fixture engineered for optimal performance, longevity, and energy efficiency. Delivering an impressive 19,980 lumens at 148 lm/W, this fixture is ideal for large-scale exterior applications including commercial buildings, entryways, walkways, courtyards, and security zones.

Crafted from heavy-duty die-cast aluminum and finished with an anti-UV polyester coating, the MWP15 resists corrosion, salt exposure, water, and discoloration. It is IP65-rated for wet locations and tested to ANSI C136.31 3G vibration standards, ensuring durability in demanding environments. The fixture features an anti-UV clear ridged polycarbonate lens for crisp and uniform light distribution while preventing yellowing over time.

Available with optional features such as an integrated PIR photocell sensor for dusk-to-dawn operation and a 90-minute emergency battery backup, this wall pack is flexible for a variety of use cases. Certified for UL, FCC, and RoHS compliance and eligible for lighting rebates, the MWP15 is a reliable choice backed by a 5-year / 50,000-hour warranty.

Specifications:

Electrical Data:

• Input Voltage: 120-277V

• Frequency: 50/60 Hz

• Wattage: 135W

• Power Factor: >0.9

• THD: ≤20%

• Operating Temperature: -40°F to 104°F (-40°C to 40°C)

• Dimmable: No

Lighting Performance:

• Lumen Output: 19,980 lm

• Efficacy: 148 lm/W

• CCT Options: 4000K, 5000K

• CRI: Ra ≥70

• L70 Lifetime: 50,000 hours

Construction & Design:

• Material: Die-Cast Aluminum with Anti-UV Polyester Coating

• Lens Type: Clear Ridged Polycarbonate

• Diffuser: Anti-UV, Clear

• Finish: Dark Bronze

• Mounting: Wall Mount

• Rating: IP65 Wet Location

• Vibration Rating: ANSI C136.31 (3G Rated)

Control Options:

• Photocell Sensor: Optional Integrated PIR

• Emergency Backup: Optional 90-Minute Battery Backup

Certifications & Warranty:

• Certifications: UL (US & Canada), FCC, RoHS

• Rebate Eligible: Yes

• Warranty: 5 Years / 50,000 Hours
