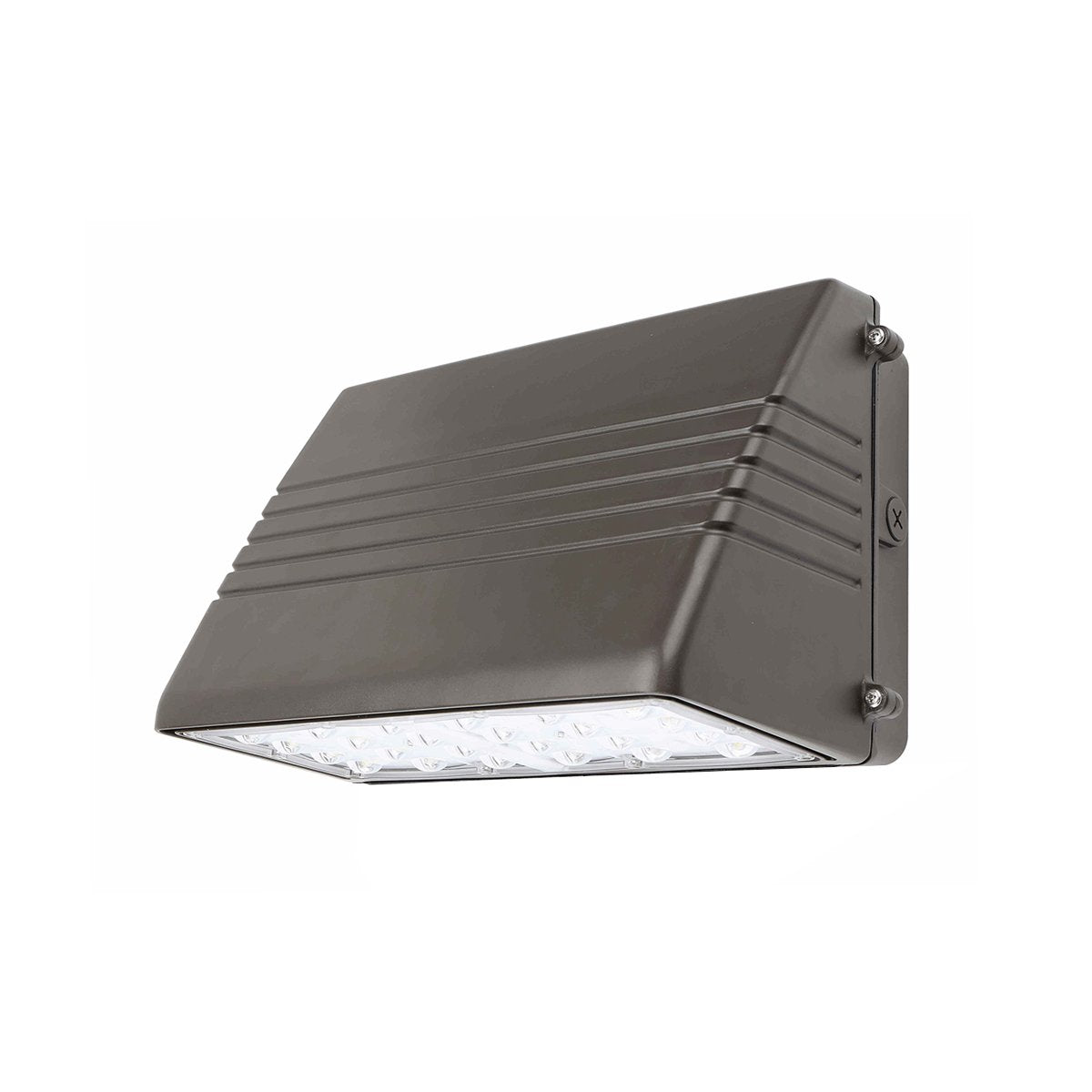

MWP02 SERIES LED Full Cutoff Wall Pack – 70W, 9900 Lumens, IP65, Optional Photocell (120-277V)

High-Efficacy Outdoor LED Wall Pack – 141 lm/W, Full Cutoff Design, Wet Location Rated, Durable Dark Bronze Housing

The MWP02 SERIES 70W LED Full Cutoff Wall Pack is a premium outdoor lighting solution engineered for performance, efficiency, and durability. Delivering an impressive 9900 lumens at 141 lm/W, this fixture is ideal for building perimeters, pedestrian walkways, and general security lighting.

Built with a robust die-cast aluminum housing finished with an anti-UV polyester coating, the MWP02 is IP65-rated for protection against dust and water jets, making it suitable for demanding outdoor environments. The fixture features a precision-engineered clear polycarbonate lens with a protective tempered glass shield, offering both optical clarity and long-lasting durability while preventing discoloration.

This luminaire supports wall-mounted installation and operates on 120-277V. A factory-installed photocell option is available for automatic dusk-to-dawn operation. With a 5-year / 50,000-hour warranty and full UL, FCC, and RoHS compliance, the MWP02 is designed to meet energy-efficiency rebate requirements and reduce total cost of ownership.

Specifications:

Electrical Data:

• Input Voltage: 120-277V

• Frequency: 50/60 Hz

• Wattage: 70W

• Power Factor: >0.9

• THD: ≤20%

• Operating Temp: -49°F to 113°F (-45°C to 45°C)

• Dimmable: No

Lighting Performance:

• Lumen Output: 9900 lm

• Efficacy: 141 lm/W

• CCT: 5000K

• CRI: Ra ≥70

• L70 Lifetime: 50,000 hours

Construction & Design:

• Material: Die-Cast Aluminum with Anti-UV Polyester Coating

• Lens: Clear Polycarbonate with Tempered Glass Cover

• Diffuser Type: Clear

• Finish: Dark Bronze

• Mounting: Wall Mount

• Rating: IP65 Wet Location (Dust-tight, Water Jets – IEC 60529)

Controls (Optional):

• Photocell Sensor: Factory-installed option available for automatic on/off

Certifications & Warranty:

• Certifications: UL (US & Canada), FCC, RoHS

• Rebate Eligible: Yes

• Warranty: 5 Years / 50,000 Hours
