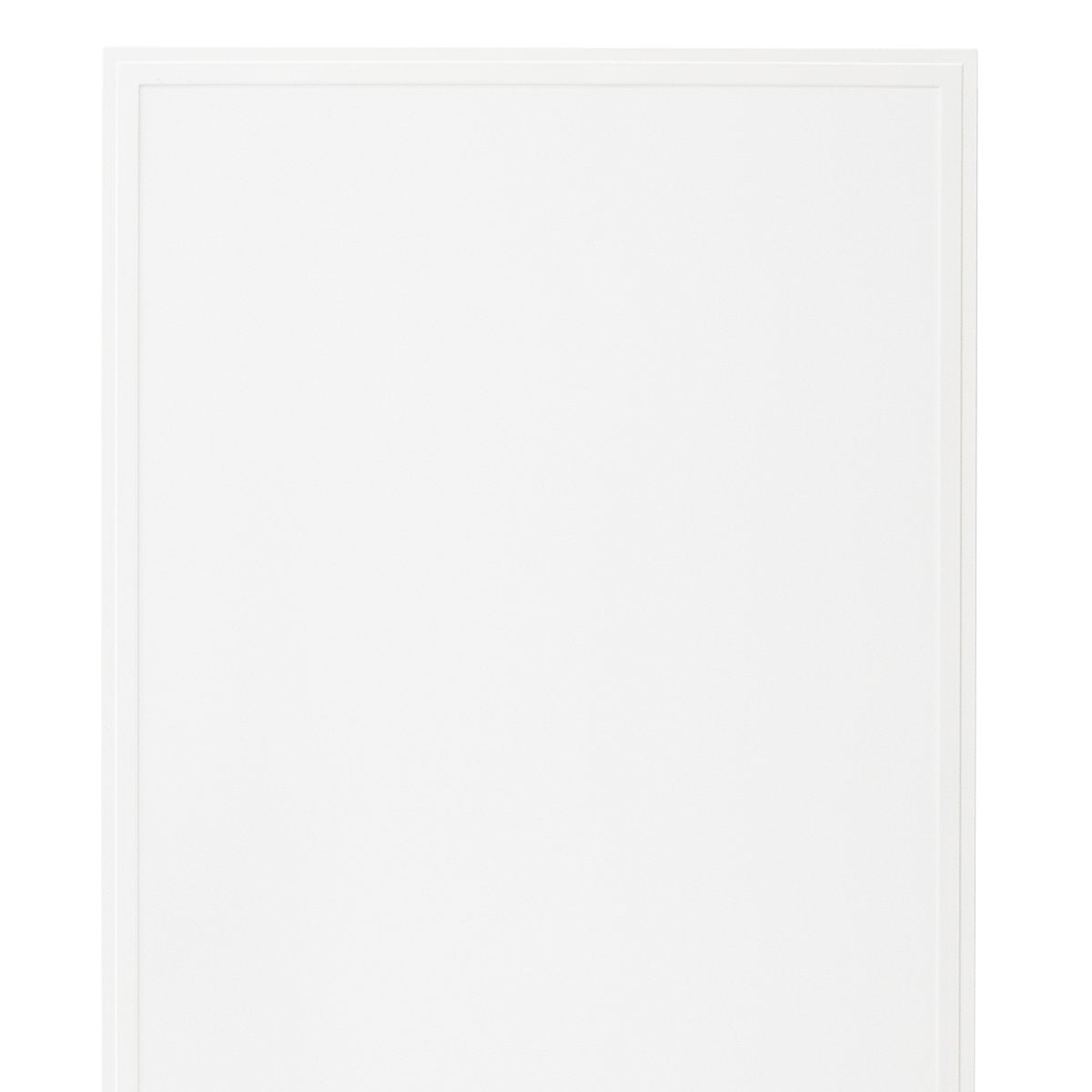

MFP01 Series LED Tunable Panel Light, 2x4, 50W Max, Up to 127 lm/W, 3CCT & 3W Selectable, 0-10V Dimmable, Damp Location (120-277V)

Premium 2x4 Back-Lit LED Panel with 9 Tunable Settings, Energy Efficient, Smart Sensor Ready

The MFP01 Series 2x4 LED Tunable Panel Light is a TAA Compliant (Made in Mexico) indoor back-lit luminaire designed for commercial ceiling applications. With 9 tunable configurations, this 50W max fixture allows users to select between three color temperatures (3500K / 4000K / 5000K) and three wattages (30W / 40W / 50W) to optimize performance for varying lighting needs—delivering up to 6,100 lumens at an efficacy of 127 lm/W.

Built with an aluminum frame and die-formed steel back, the MFP01 is engineered for long-term durability and superior thermal management. The anti-UV frosted polycarbonate lens ensures uniform light output while resisting yellowing and degradation over time.

Designed for recessed T-bar ceiling installation, it includes earthquake clips for secure mounting. Optional surface mount and cable suspension kits expand installation flexibility. This fixture supports 0-10V continuous dimming and is smart sensor ready for advanced control capabilities.

Key Features:

• Tunable Output: 3 wattage (30W/40W/50W) × 3 CCT (3500K/4000K/5000K) settings

• High Efficacy: Up to 6,100 lumens @ 127 lm/W

• TAA Compliant: Manufactured in Mexico for federal projects

• Optics: Frosted anti-UV polycarbonate lens for consistent light diffusion

• Controls: 0-10V dimming, smart sensor compatible

• Mounting: Standard recessed T-bar; optional surface and suspension kits available

• Certifications: UL Listed, qualifies for energy rebates, Damp Location rated

• Warranty: 5 Years / 50,000 Hours (L70)

Applications:
Ideal for offices, schools, retail stores, hospitals, lobbies, hallways, conference rooms, and other commercial indoor spaces requiring adaptive, energy-efficient lighting.
