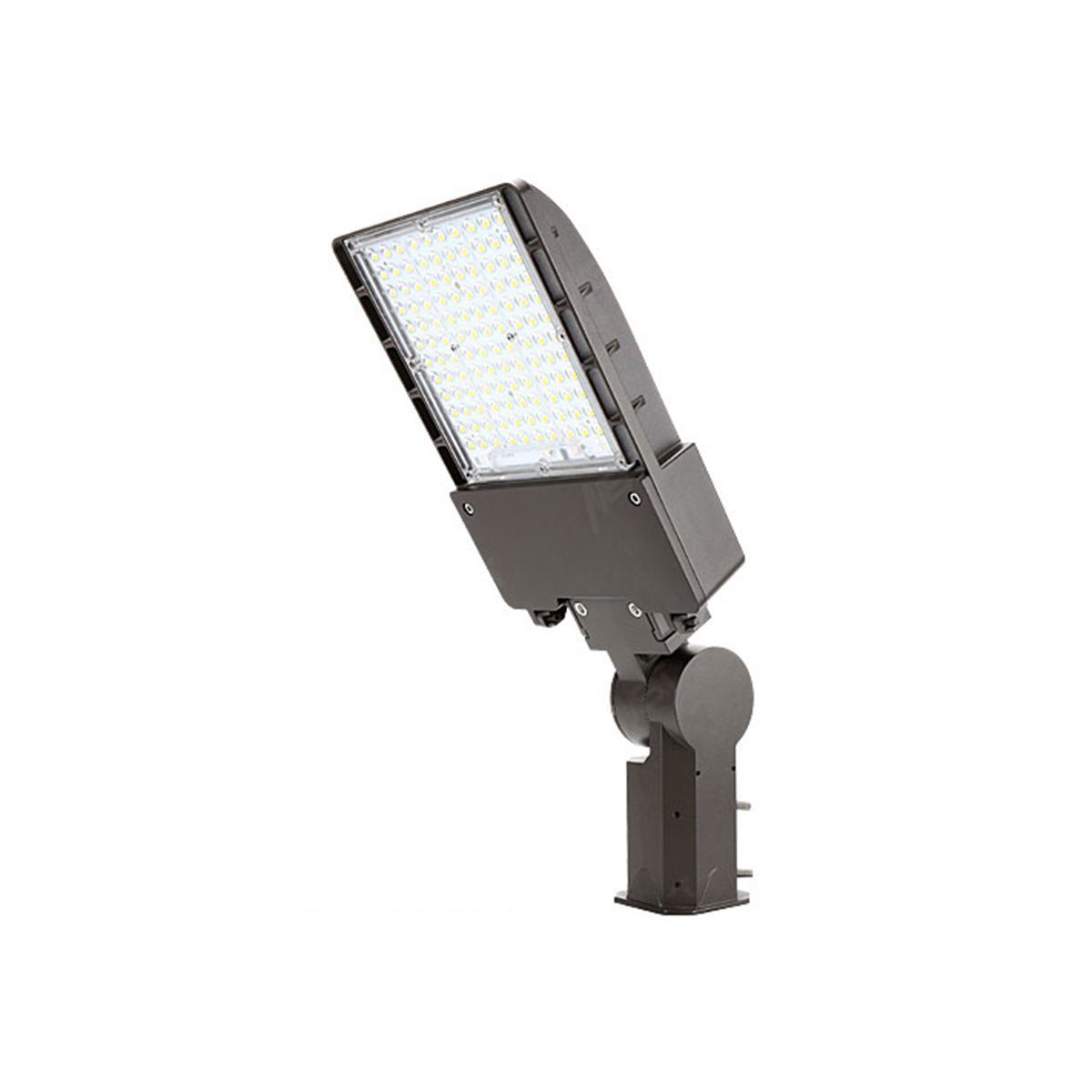

MAL04 ECO SERIES – 100W LED Area Light, 13,800 Lumens, IP65, 0-10V Dimmable (120-277V)

Outdoor Rated | Smart Controls | Type III Lens | Multiple Mounting Options | DLC Premium

The MAL04 ECO Series 100W LED Area Light is a high-performance, energy-efficient solution for outdoor commercial lighting applications. Delivering 13,800 lumens at 138 lm/W, this fixture is built to outperform traditional HID lighting with advanced thermal design, smart control capability, and durable construction.

Ideal for parking lots, roadways, and large-area illumination, the MAL04 supports 0–10V dimming, optional motion/photocell sensors, and multiple mounting configurations, making it a versatile choice for modern lighting installations.

Applications

• Commercial parking areas

• Auto dealerships & industrial yards

• Building perimeters

• Roadways, alleys, and pedestrian walkways

• Security and area lighting zones

Key Features

• Wattage: 100W

• Lumens: 13,800

• Efficacy: 138 lm/W

• Voltage: 120–277V

• Dimming: 0–10V Continuous

• CCT Options: 4000K / 5000K

• Lens: Type III Clear Polycarbonate (Type II, IV, V optional)

• CRI: Ra ≥70

• Power Factor: >0.9

• THD: ≤20%

• Rated Life: L70 at 50,000 hours

• Certifications: UL Listed (US & Canada), FCC, CE, RoHS

• Warranty: 5 Years / 50,000 Hours

• IP Rating: IP65 – Wet Location

• Operating Temp: -40°F to 113°F (-40°C to 45°C)

Construction

• Housing: Heavy-duty die-cast aluminum

• Finish: Anti-UV dark bronze polyester powder coat

• Sealing: IP65-rated, water-jet and dust-proof

• Vibration Rating: 3g per IEC 6008-2-6:1995

• Lens: Anti-UV Clear Polycarbonate with IES/NEMA Type III beam

Mounting Options

• Slip-Fit Mount

• Round or Square Pole Mount

• Trunnion Mount

• Straight-Arm Wall Mount

Smart Controls & Accessories (Optional)

• Twist-Lock Photocell Sensor

• Integrated Microwave Bi-Level Motion Sensor

• Remote Programmable Sensor Control

• Shorting Cap for Manual Switch or Timer Operation
