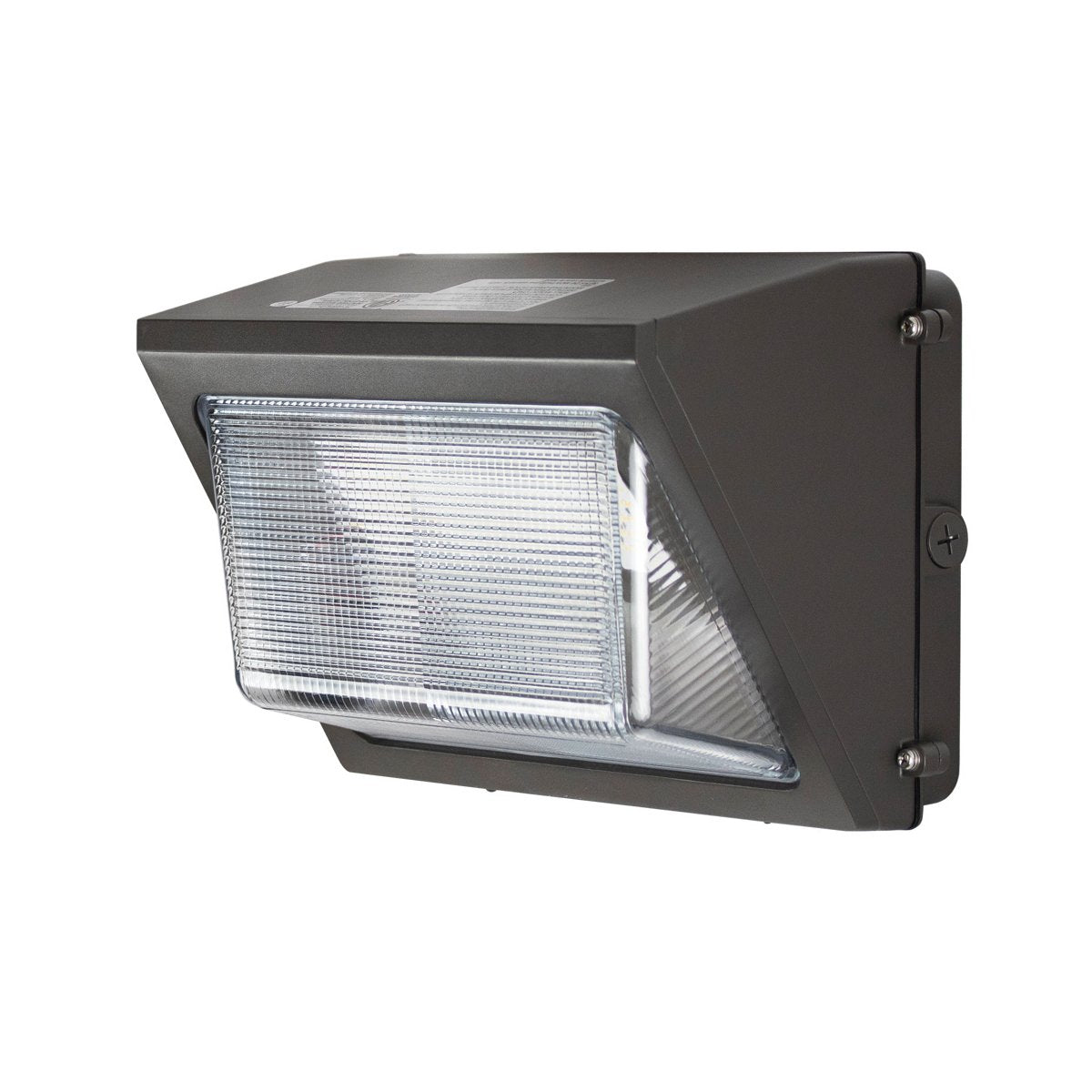

LED Semi Cutoff Wall Pack, 40/50/60/80W Tunable, 4000K/5000K, IP65, 149 lm/W, 0-10V Dimmable, Photocell Ready – QUADFORCE Series

4-Wattage Selectable Outdoor LED Wall Pack – Wet Location Rated, Prismatic Tempered Glass, 7-Year Warranty, Ideal for Security & Building Perimeters

The QUADFORCE Series ETH-TWP-80W is a high-performance LED Semi Cutoff Wall Pack built for long-lasting, energy-efficient outdoor illumination. With 4 selectable wattage settings (40W, 50W, 60W, 80W) and a maximum output of 11,950 lumens, this powerful wall pack delivers an exceptional efficacy of 149 lumens per watt, providing bright, uniform light for building exteriors, walkways, and general security applications.

Constructed with solid die-cast aluminum housing and a durable anti-UV polyester powder coat finish, the fixture is rated IP65 for wet locations, offering full protection from dust, rain, and outdoor elements. The anti-UV prismatic tempered glass lens ensures crisp light transmission while resisting discoloration over time. Wide-format heat sinks are integrated into the design to optimize heat dissipation and extend LED life.

A wattage tuning switch and built-in mounting level are housed inside the fixture for easy installation and customization. The unit also supports optional photocell sensors for dusk-to-dawn operation and is 0-10V dimmable for advanced energy control. ETL listed, FCC, and RoHS compliant, this wall pack qualifies for many regional energy rebate programs and is backed by a robust 7-year / 75,000-hour warranty.

Key Features:

• 4 Wattage Selectable: 40W / 50W / 60W / 80W

• Up to 11,950 Lumens (149 lm/W)

• Selectable CCT: 4000K / 5000K

• 0-10V Continuous Dimming

• IP65 Wet Location Rated – Die Cast Aluminum Housing

• Prismatic Anti-UV Tempered Glass Lens

• Integrated Wattage Selector & Level for Easy Installation

• Surge Protection: 2kV (L-N), 4kV (L/N-PE)

• Operating Temp: -22°F to 113°F (-30°C to 45°C)

• Optional Photocell Sensor Available

• ETL Listed, FCC, RoHS Compliant

• 7-Year / 75,000-Hour Warranty

Ideal For:
Building exteriors, security lighting, loading docks, pedestrian walkways, entryways, courtyards, and general perimeter lighting.
