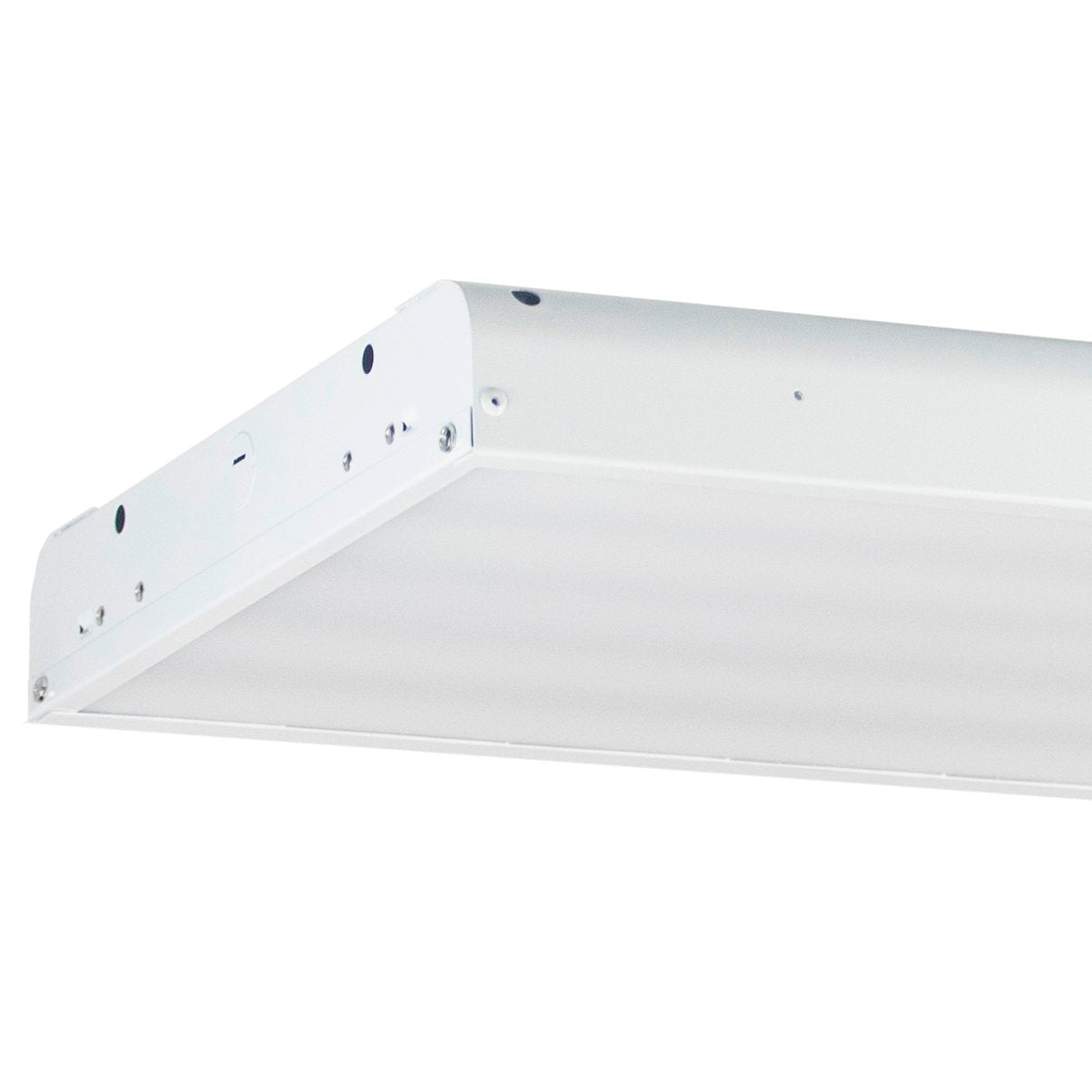

HLO Series – LED Linear High Bay – 2-FT – 110W – 17,710 Lumens – 161 lm/W – IP40 – 0-10V Dimmable – Indoor Luminaire (120–277V)

The ETH-B03-110W-H is a high-efficiency 2-FT LED Linear High Bay designed for industrial and commercial spaces with ceiling heights over 25 feet. Delivering 17,710 lumens at 161 lm/W, this fixture combines performance, reliability, and smart control readiness for high-demand indoor environments.

Key Features

• High Efficiency: 161 lumens per watt; total output of 17,710 lumens

• Smart Control Capable: 0–10V dimming, motion, daylight, and bi-level sensor options

• Durable Build: Aluminum housing with ventilated driver bay and anti-UV frosted polycarbonate lens

• Mounting Flexibility: Includes V-hooks and chains; optional pendant mount brackets

• Optional Wire Guard & Emergency Battery Backup (8W or 16W, 90 min runtime)

• UL, FCC, CE, and RoHS Compliant

• 7-Year / 75,000 Hour Warranty

• Rebate Eligible

Specifications

Electrical

• Input Voltage: 120–277V

• Input Frequency: 50/60 Hz

• Wattage: 110W

• Power Factor: >0.9

• THD: ≤15%

• Dimming: 0–10V Continuous

Lighting Performance

• Lumen Output: 17,710 lm

• Efficacy: 161 lm/W

• CCT Options: 4000K, 5000K

• CRI: Ra ≥80

• Rated Life (L70): 75,000 hours

Construction & Durability

• Size: 2-FT

• Housing: Aluminum with white semi-gloss finish

• Lens: Anti-UV Frosted Polycarbonate

• Rating: IP40 Dry Location (IEC 60529)

• Operating Temp: -4°F to 104°F (-20°C to 40°C)

Mounting Options

• Standard: V-Hooks and Chains

• Optional: Pendant Mount Brackets

Controls & Options

• Sensors: Motion Detection, Daylight Harvesting, Bi-Level Dimming

• Emergency Backup: 8W or 16W for 90 minutes

• Wire Guard: Available for additional lens protection

Certifications

• UL Listed (U.S. & Canada)

• FCC, CE, RoHS Compliant

• Eligible for Energy Rebate Programs

Ideal Applications

• Warehouses

• Gymnasiums

• Manufacturing Facilities

• Storage Areas

• Aisles

• Packaging Stations

• Covered Industrial Decks
