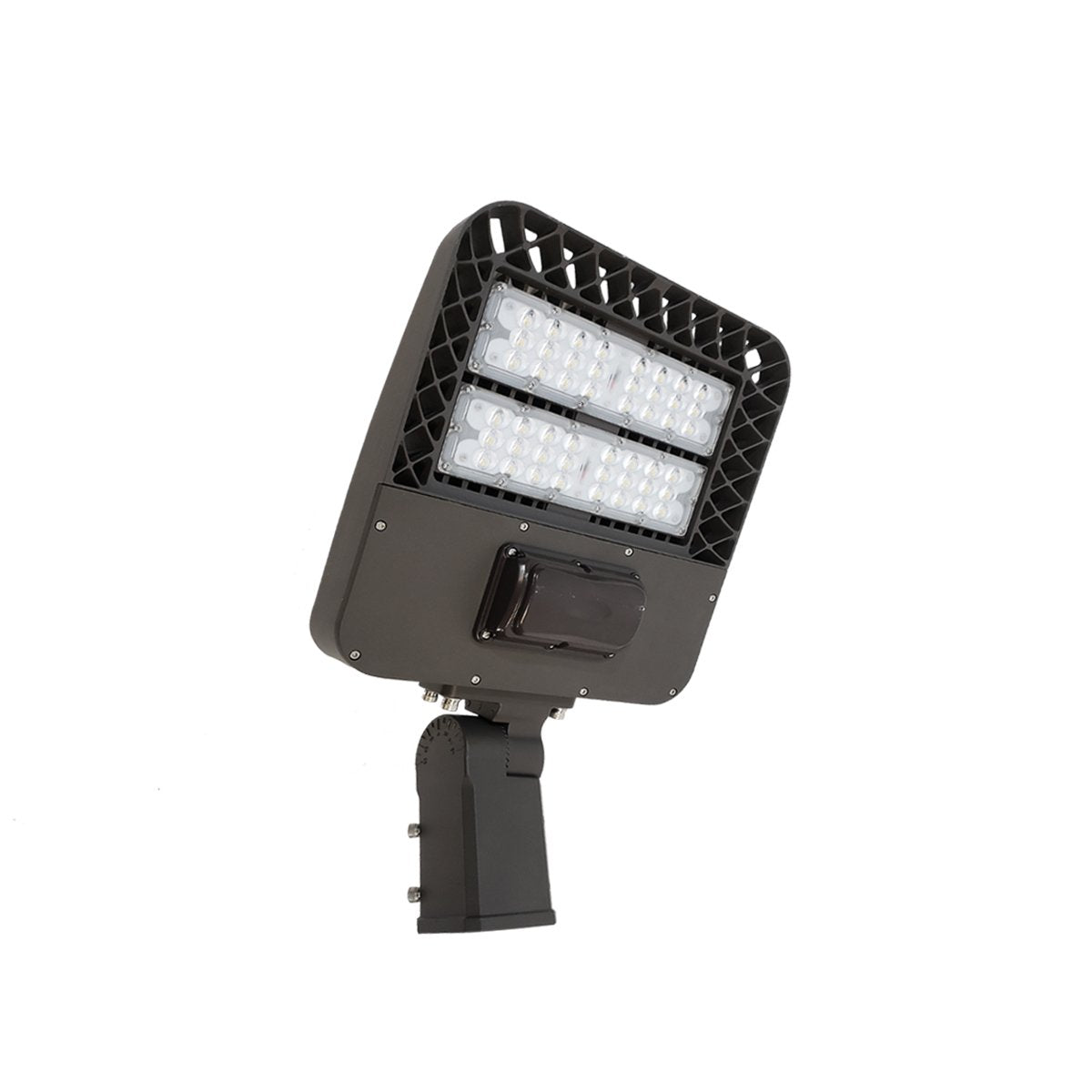

HG G2 Series – 100W LED Area Light, 130 lm/W, IP65, Type III, Dimmable, 5000K, Smart Sensor Ready (120-277V)

Durable Outdoor 100W LED Area Light – 13,000 Lumens, IP65 Rated, 0-10V Dimmable, Smart Control Compatible, 5-Year Warranty

The HG G2 Series HG-SL-100W LED Area Light delivers high-performance outdoor lighting with smart control compatibility, built for safety, energy savings, and long-term durability. Designed for parking lots, industrial perimeters, roadways, walkways, and commercial sites, this 100W LED luminaire provides 13,000 lumens at 130 lm/W efficacy in a crisp 5000K daylight color temperature.

With its IP65 wet location rating, the fixture is protected against dust, rain, and harsh environments. Constructed from heavy-duty die-cast aluminum with a corrosion-resistant, anti-UV polyester coating and SUS316 stainless steel screws, it withstands demanding outdoor conditions including high salt exposure and vibrations (1.5g rated).

Equipped with a Type III clear polycarbonate lens, it ensures even horizontal light distribution, ideal for wide outdoor coverage. Multiple mounting options—Slip-Fitter, Trunnion, Square and Round Pole Adapters—allow flexible installation across varied applications.

The fixture is 0-10V dimmable and supports smart lighting upgrades, including twist-lock PIR photocells, bi-level dimming, and motion detection sensors for optimized energy use. A shorting cap is included for manual switch or timer integration.

Certified for energy-efficient performance with UL, FCC, CE, and RoHS listings, this fixture also qualifies for rebate programs and includes a 5-year / 50,000-hour warranty.

Key Features:

• Wattage: 100W | Lumens: 13,000 | Efficacy: 130 lm/W

• Dimming: 0-10V Continuous | Voltage: 120-277V | Power Factor: >0.9 | THD: ≤10%

• Color Temperature: 5000K Daylight | CRI: Ra ≥82

• Operating Temp: -40°F to 122°F (-40°C to 50°C)

• Lens: Clear Type III Polycarbonate (UV-Resistant)

• Mounting Options: Slip-Fit, Trunnion, Square & Round Pole Mounts

• Controls: PIR Twist-Lock Photocell, Motion Sensor with Bi-Level Dimming, Shorting Cap

• Housing: Die-Cast Aluminum, Dark Bronze Finish

• Durability: IP65 Rated | Surge Protection: 12kV | Vibration Rated: 1.5g

• Certifications: UL, FCC, CE, RoHS | Warranty: 5 Years / 50,000 Hours
