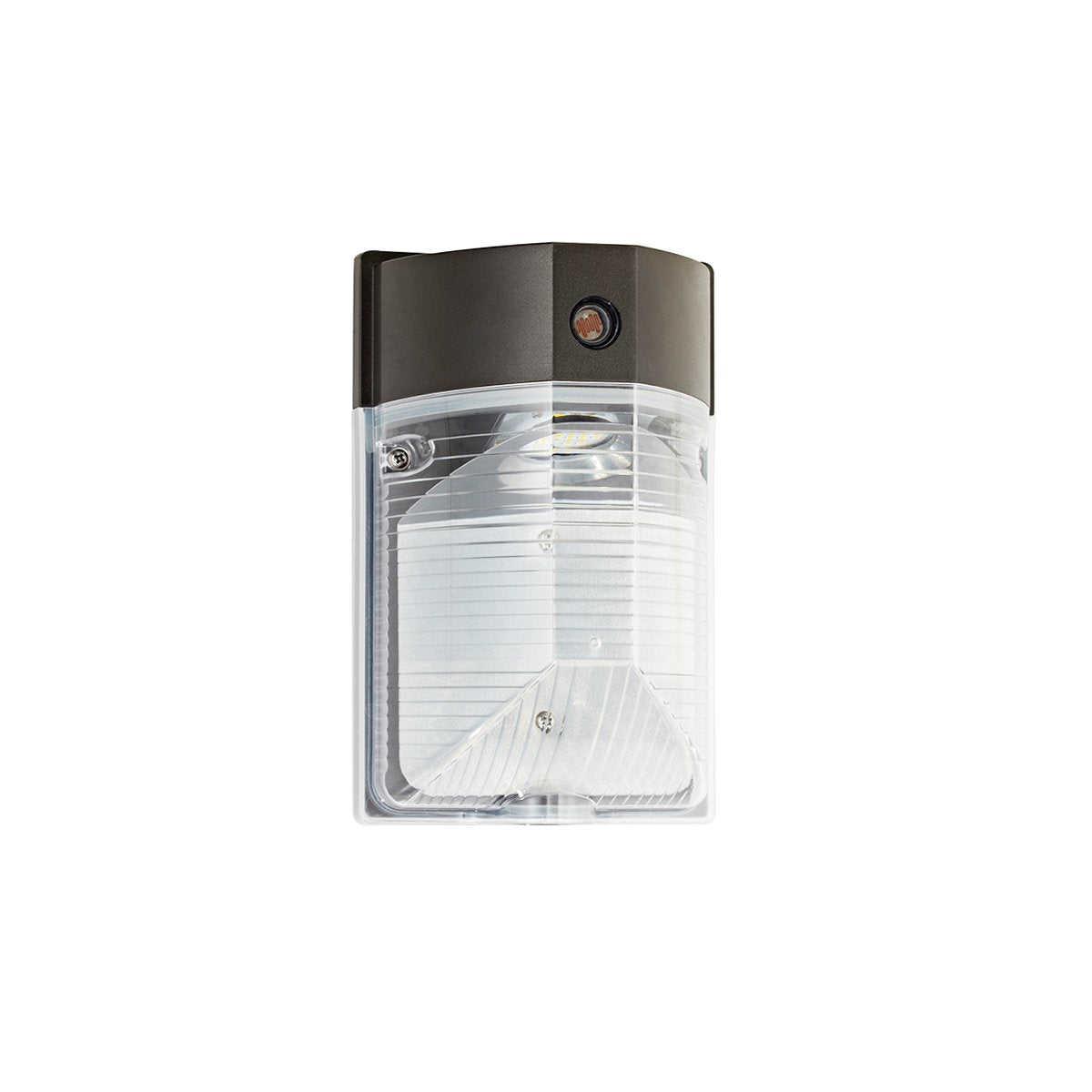

FI WM SERIES LED Mini Wall Pack – 25W, 2700 Lumens, IP65, with Photocell Sensor (120-277V)

Compact Outdoor LED Wall Pack – Weatherproof, 108 lm/W, Prismatic Lens, Integrated Photocell, Dark Bronze Finish

The FI-MWM0125W from the FI WM SERIES is a high-performance 25W LED Mini Non-Cutoff Wall Pack designed for durable, energy-efficient outdoor lighting. Delivering 2700 lumens at 108 lumens per watt, this compact luminaire comes equipped with an integrated dusk-to-dawn photocell for automatic on/off functionality, making it ideal for security, perimeter, and building exterior applications.

Constructed from heavy-duty die-cast aluminum with an anti-UV polyester coating, this fixture is engineered to withstand harsh environments, resisting corrosion, water intrusion, and physical damage. The anti-UV prismatic polycarbonate lens ensures crisp, even illumination while maintaining long-term clarity.

With an IP65 Wet Location rating and a wide operating temperature range, this wall pack is built for reliable performance in any climate. Backed by a 5-year / 50,000-hour warranty and qualifying for energy-efficient lighting rebates, the FI WM SERIES offers unbeatable value for commercial and industrial applications.

Specifications:

Electrical Data:

• Input Voltage: 120-277V

• Frequency: 50/60 Hz

• Wattage: 25W

• Power Factor: >0.9

• THD: ≤15%

• Operating Temperature: -40°F to 122°F (-40°C to 50°C)

Lighting Performance:

• Lumen Output: 2700 lm

• Efficacy: 108 lm/W

• CCT: 5000K

• CRI: Ra ≥80

• Dimmable: No

• L70 Lifetime: 50,000 hours

Construction & Design:

• Material: Die-Cast Aluminum with Anti-UV Polyester Coating

• Lens: Prismatic Polycarbonate (Anti-UV)

• Finish: Dark Bronze

• Mounting: Wall Mount

• Rating: IP65 Wet Location (Dust-tight, water jets – IEC 60529)

Controls:

• Photocell Sensor: Built-in for automatic dusk-to-dawn control

Certifications & Warranty:

• Certifications: UL (US & Canada), FCC, CE, RoHS

• Rebate Eligible: Yes

• Warranty: 5 Years / 50,000 Hours
