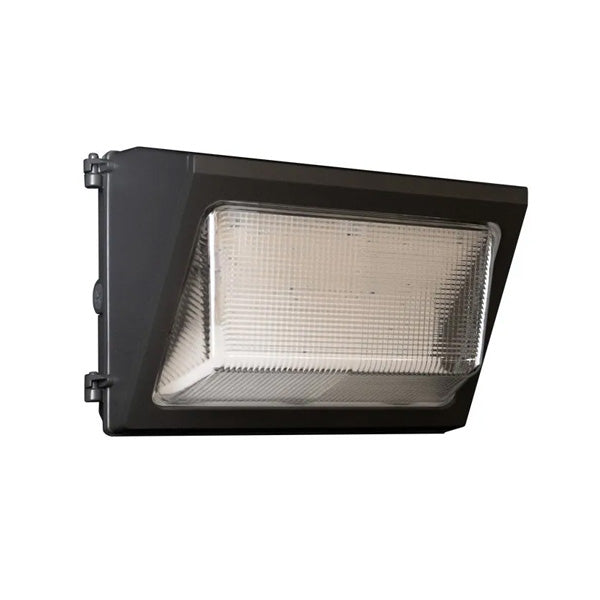

FI G4 Series 120W Max LED Semi Cutoff Wall Pack – 3W Tunable, 142 lm/W, IP65, 0-10V Dimmable

High-Performance Outdoor Wall Pack, 3X-Wattage Selectable (90W/100W/120W), Prismatic Glass Lens, Photocell Optional, Wet Location Rated

The FI G4 Series Semi Cutoff LED Wall Pack delivers powerful and energy-efficient outdoor lighting with precision, reliability, and flexibility. Featuring 3X-Wattage Selectability (90W, 100W, 120W) and high efficacy of 142 lm/W, this wall-mounted luminaire is engineered for superior performance in demanding outdoor environments. Ideal for illuminating building perimeters, walkways, loading zones, and general security applications.

Constructed with die-cast aluminum housing and an anti-UV polyester powder coating, the G4 Series resists corrosion, weather, and impact. The IP65 Wet Location rating ensures durability in harsh conditions. The fixture includes a prismatic tempered glass lens that enhances light clarity and resists discoloration over time.

For enhanced installation and customization, the fixture includes an internal wattage tuning switch, integrated mounting level, and an optional dusk-to-dawn photocell sensor. The 0-10V dimming capability enables seamless integration with lighting control systems for energy savings and adaptive brightness.

Backed by a 7-year, 75,000-hour warranty, the FI G4 Series Wall Pack meets UL, FCC, and RoHS standards, qualifying for energy-efficiency rebate programs.

Key Features:

• Selectable Wattages: 90W / 100W / 120W

• High Lumen Output: Up to 17,040 lumens

• Efficacy: 142 lumens per watt

• CCT: 5000K (Daylight)

• Dimming: 0-10V Continuous Dimming

• Lens: Clear prismatic tempered glass

• Housing: Die-cast aluminum, dark bronze, UV-resistant coating

• Weather Protection: IP65 rated for wet locations

• Mounting: Wall mount with integrated leveling tool

• Voltage: 120–277V | Frequency: 50/60Hz

• Power Factor: >0.9 | THD: ≤20%

• Optional Photocell Sensor

• Certifications: UL Listed, FCC, RoHS

• Warranty: 7 Years / 75,000 Hours

Perfect for commercial buildings, warehouses, and perimeter lighting where durability, control, and light quality matter most.
