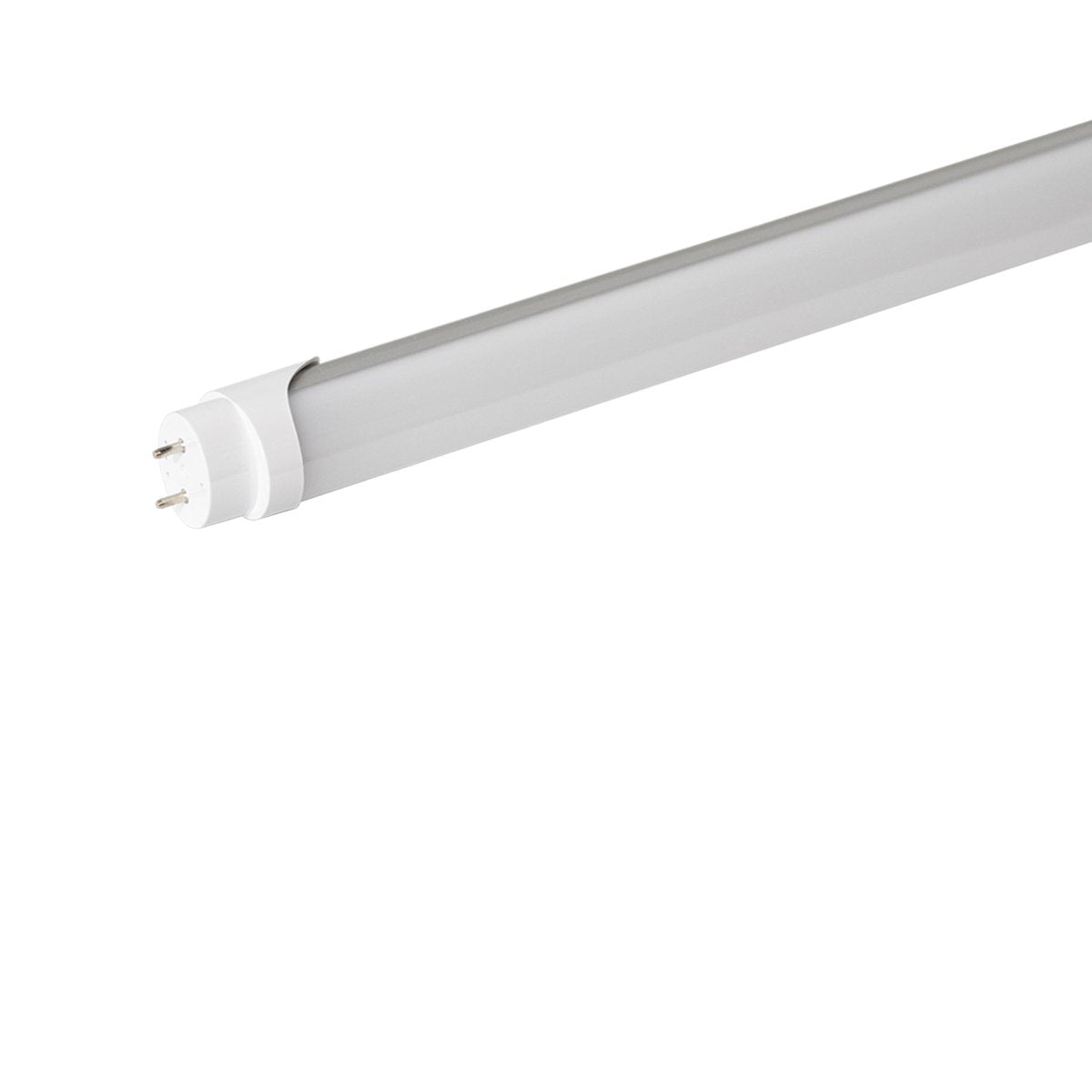

EDI Series – LED T8 Tube – 4FT – 18W – 2673 Lumens – 147 lm/W – Hybrid A+B – 4000K / 5000K – IP44

The EDI-T84F18-AB G1 is a high-performance 4-foot LED T8 Hybrid (Type A+B) replacement lamp engineered for maximum versatility and efficiency. Delivering 2673 lumens at 147 lm/W, this 18W lamp supports both ballast-compatible (Type A) and direct-wire (Type B) installations with single or double-ended wiring.

Constructed with an aluminum backing for optimal heat dissipation and an anti-UV frosted polycarbonate lens, it delivers consistent light output while preventing lens discoloration. It is IP44 rated for wet locations, making it suitable for a wide range of commercial and industrial applications.

Key Features

• Dual Mode (Type A+B): Works with existing ballasts or direct wiring

• Single & Double-Ended Power: Flexible installation options

• High Efficacy: 147 lumens per watt

• Anti-UV Frosted Lens: Uniform light output, no yellowing

• IP44 Rated: Damp location approved

• Long Life: 50,000 hours (L70)

• Occupancy Sensor Compatible

• Backed by 5-Year Warranty

• Rebate Eligible

Specifications

Electrical

• Input Voltage: 120–277V

• Frequency: 50/60 Hz

• Wattage: 18W

• Power Factor: >0.9

• THD: ≤20%

• Operating Temp: -4°F to 104°F (-20°C to 40°C)

Lighting Performance

• Lumen Output: 2673 lm

• Efficacy: 147 lm/W

• Color Temp (CCT): 4000K, 5000K

• CRI: Ra ≥80

• Dimmable: No

• Rated Life (L70): 50,000 hours

Construction

• Size: 4FT

• Base Type: G13

• Driver: Internal (Type A+B Hybrid)

• Lens: Anti-UV Frosted Polycarbonate

• Color: White

• Material: Aluminum backing for heat dissipation

• IP Rating: IP44 (Wet Location)

Certifications & Listings

• UL Listed (U.S. & Canada)

• FCC Compliant

• RoHS Compliant

• Qualifies for Energy Efficiency Rebates

Warranty

• 5 Years / 50,000 Hours

Applications

Ideal for upgrading 4-foot fluorescent lamps in:

• Linear troffers

• Wraparound fixtures

• Shop lights

• Commercial and industrial environments
