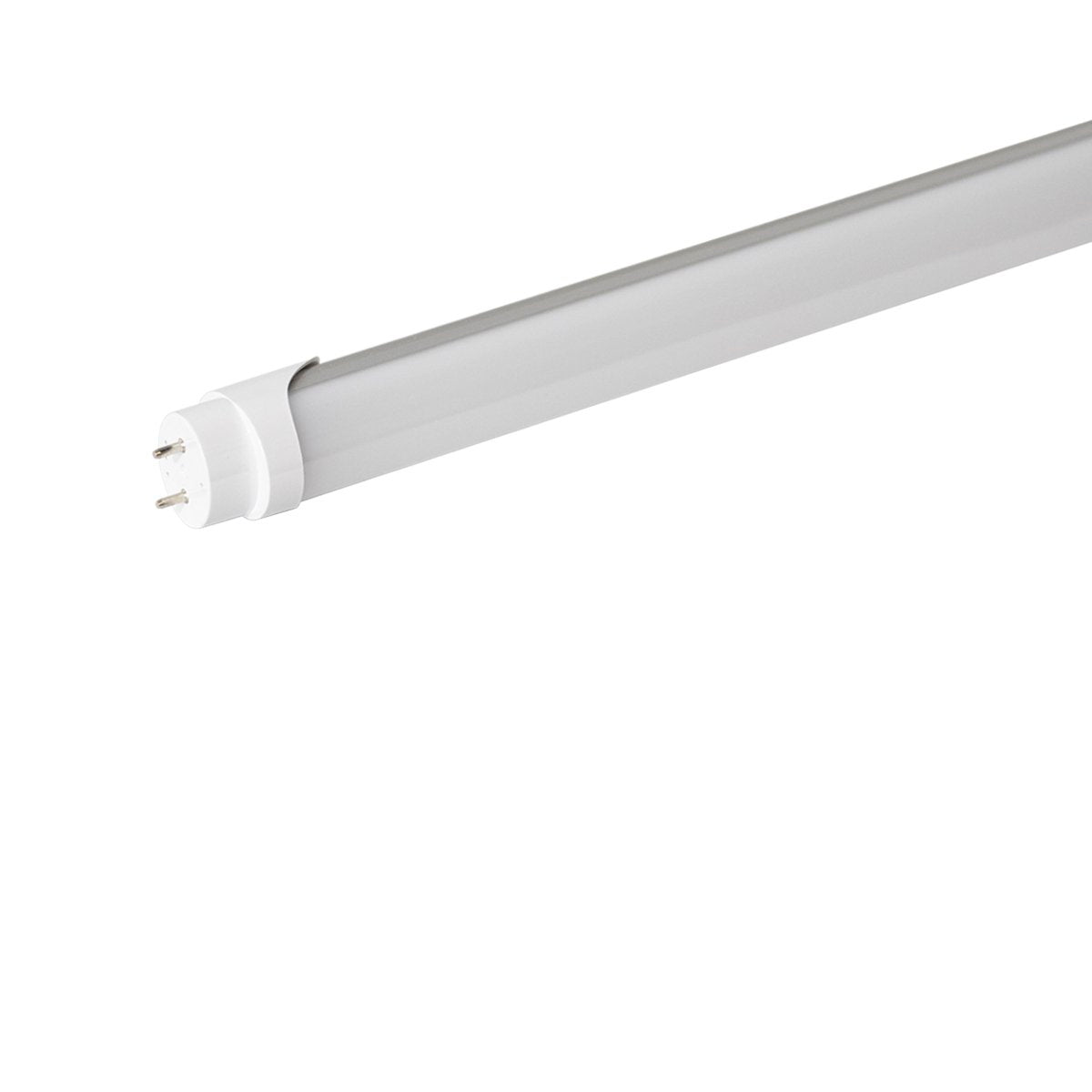

EDI Series – LED T8 Tube – 4-FT – 18W – 2673 Lumens – 147 lm/W – Hybrid Type A+B – 4000K/5000K – IP44 Wet Rated

 High-performance 4-foot T8 hybrid tube lamp with dual-mode operation and industry-leading efficacy for commercial linear lighting retrofits.

The EDI-T84F18-AB G1 is a next-generation 4-foot LED T8 hybrid replacement lamp, engineered for maximum energy efficiency and flexibility in installation. Designed for use with or without a ballast, this 18W lamp delivers 2673 lumens at 147 lm/W and supports Type A (ballast-compatible) and Type B (direct wire) operation for single- or double-ended wiring. A frosted, anti-UV polycarbonate lens ensures even light distribution while resisting discoloration. The IP44 rating makes it ideal for use in damp environments such as offices, warehouses, and industrial facilities. Backed by a 5-year warranty, it is also eligible for energy rebate programs.

Specifications

Electrical

• Input Voltage: 120–277V

• Input Frequency: 50/60 Hz

• Wattage: 18W

• Power Factor: >0.9

• THD: ≤20%

• Operating Temp: -4°F to 104°F (-20°C to 40°C)

Lighting Performance

• Lumens: 2673

• Efficacy: 147 lm/W

• CCT: 4000K, 5000K

• CRI: Ra ≥80

• Dimmable: No

• L70 Lifespan: 50,000 hours

Construction & Features

• Size: 4-FT

• Base Type: G13

• Driver Type: Hybrid (Type A + B)

• Installation: Single- or Double-Ended Power

• Lens: Frosted Anti-UV Polycarbonate

• Body: Aluminum backing for optimal heat dissipation

• Color: White

• Rating: IP44 (Wet Location)

• Warranty: 5 Years / 50,000 Hours

Certifications & Controls

• Certifications: UL (U.S. & Canada), FCC, RoHS

• Controls: Compatible with ON/OFF occupancy sensors

• Rebate Eligibility: Qualifies for energy-efficient lighting rebates

Applications
Ideal retrofit solution for 4-foot T8 or T12 fluorescent lamps in troffers, wraparounds, strip lights, and shop fixtures in commercial and industrial settings.
