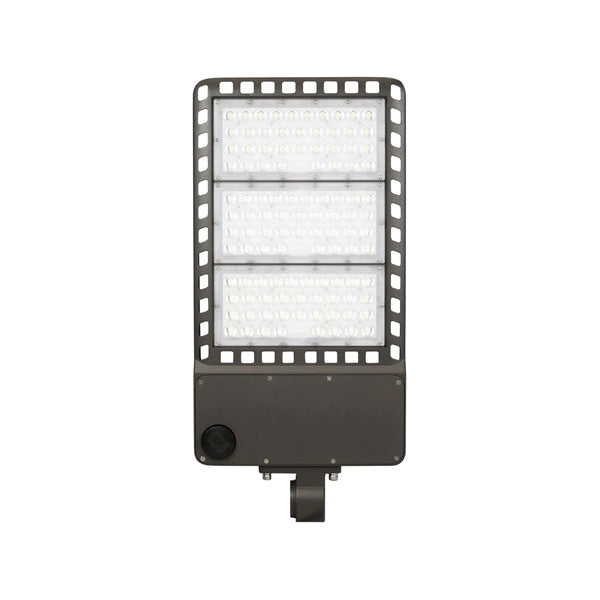

400W Max Tunable LED Area Light – 3-Wattage Select, 150 lm/W, IP67 Rated – FI HLO SERIES

Up to 60,000 Lumens, 0-10V Dimmable, Smart Sensor Ready, IP67 Wet Location Rated, Multiple Mount Options (120-277V)

The FI-SXT-400W-H-H-5000K from the FI HLO SERIES is a high-output, 400W max LED area light engineered for versatile outdoor applications. With 3-wattage selectable settings (300W / 350W / 400W) and high-performance 150 lm/W efficacy, this luminaire delivers up to 60,000 lumens and supports Type III, IV, and V optics via a clear anti-UV polycarbonate lens.

Built with rugged die-cast aluminum housing and IP67 wet location protection, it withstands harsh environments while ensuring long-term reliability. This model supports 0-10V dimming, advanced motion controls, and smart sensor compatibility via a programmable twist-lock cap with optional photocell and bi-level dimming sensors.

Ideal for parking lots, industrial yards, building exteriors, and auto dealerships, this area light qualifies for energy efficiency rebates and is backed by a 5-year / 50,000-hour warranty.

Key Features:

• Model: FI-SXT-400W-H-H-5000K

• Input Voltage: 120-277V

• Selectable Wattages: 300W / 350W / 400W

• Lumen Output: 45,000 lm (300W), 52,500 lm (350W), 60,000 lm (400W)

• Efficacy: 150 lm/W

• CCT: 5000K

• Power Factor: >0.9

• THD: ≤15%

• Dimmable: 0-10V Continuous

• CRI: Ra ≥ 70

• L70 Lifetime: 50,000 hrs

• Operating Temperature: -4°F to 122°F (-20°C to 50°C)

• Lens Type: IES/NEMA Type III Clear Polycarbonate (Type II, IV, V Optional)

• Controls:

  • PIR / Microwave Motion Sensor with Bi-Level Dimming

  • Twist-lock Photocell

  • Programmable with Remote Control

  • Shorting Cap for manual/timer use

• Mounting Options:

  • Slip-Fit Mount

  • Square Pole Mount

  • Adjustable Round/Square Pole Mount

  • Trunnion Mount

• Housing: Die-Cast Aluminum, Anti-UV Polyester Coated

• Color: Dark Bronze

• IP Rating: IP67 Wet Location Rated (IEC 60529)

• Certifications: UL, FCC, RoHS

• Warranty: 5 Years / 50,000 Hours

Applications:

• Parking lots & industrial yards

• Auto dealerships

• Roadways & alleys

• Building exteriors

• Pedestrian walkways
