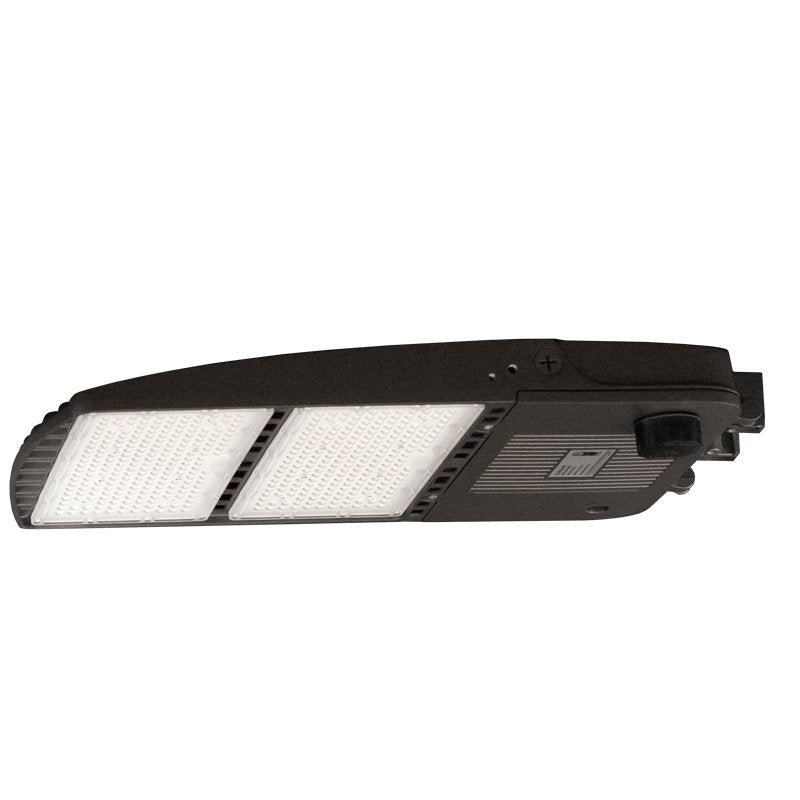

300W LED Area Light, 480V, 45,000 Lumens, IP65 – FI G4 Series

High-Voltage Outdoor Area Light, 150 lm/W, 0-10V Dimmable, Smart Sensor Ready, Multiple Mounting Options

The FI-AL-300W-G4-HV from the FI G4 Series is a top-tier 300W LED Area Light engineered for high-performance applications on 277-480V electrical systems. Delivering a powerful 45,000 lumens at 150 lumens per watt, this fixture is ideal for large outdoor areas including parking lots, building exteriors, roadways, and industrial yards.

Built from heavy-duty die-cast aluminum with a UV-resistant polyester finish, it’s fully IP65-rated for wet locations and offers IK08 impact protection, making it ideal for demanding environments. The integrated Pressure Escape Valve ensures longevity and protection from internal pressure build-up.

Standard with a Type III anti-UV clear polycarbonate lens, it is also available with Type IV or Type V optics. Smart features include Photocell, Motion Detection, and Bi-Level Dimming capabilities with programmable twist-lock controls.

Key Features:

• Wattage: 300W

• Voltage: 277-480V

• Lumen Output: 45,000 lm

• Efficacy: 150 lm/W

• CCT Options: 4000K / 5000K

• Dimming: 0-10V Continuous

• Power Factor: >0.9

• THD: ≤15%

• Operating Temperature: -40°F to 113°F (-40°C to 45°C)

• Surge Protection: 4kV–10kV (IEC 61000-4-5)

• Rated Life: L70 @ 75,000 hrs

• Color: Dark Bronze

• Lens Type: Clear Polycarbonate

• Light Distribution: IES/NEMA Type III (Type IV & V optional)

• Mounting Options: Slip-Fit, Round/Square Pole, Trunnion

• Protection: IP65 Wet Location, IK08 Impact Rated

• Certifications: UL, FCC, RoHS

• Warranty: 7 Years / 75,000 Hours

Optional Features:

• Programmable Photocell

• Bi-Level Dimming

• Motion Sensor with Remote Control

• Shorting Cap for Manual Operation
