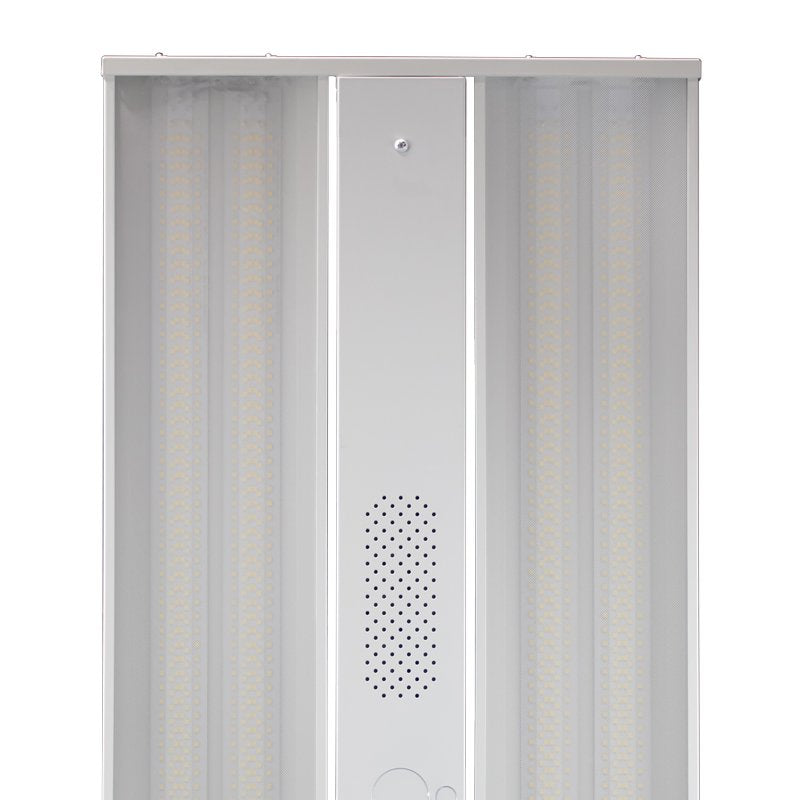

2-FT LED Slim Linear High Bay, 220W – FI G4 SERIES

33,000 Lumens, 150 lm/W, 0-10V Dimmable, IP40 Rated, Smart Sensor & EM Ready, 7-Year Warranty (120-277V)

The FI-HB-2FT-220W-G4 from the FI G4 SERIES is a high-performance 2-FT LED Slim Linear High Bay luminaire engineered for demanding commercial and industrial environments. With a powerful 33,000 lumen output at just 220W, it achieves a leading efficacy of 150 lm/W, ideal for high ceilings of 25 feet and above.

Its ultra-slim 4th generation design features a ventilated aluminum housing with multiple integrated heat sinks, ensuring long-term thermal management and performance. The anti-UV micro-filter polycarbonate lens ensures uniform light distribution and resists yellowing over time.

Standard mounting includes V-hooks and chains, with optional pendant and surface mount brackets available for flexible installations. This fixture is 0-10V dimmable and smart control ready, supporting optional integrated motion sensors, daylight sensors, bi-level dimming, and a remote-programmable controller. An 8W emergency backup battery is available for 90-minute runtime during outages.

Certified for performance and safety, the fixture qualifies for utility rebate programs and comes backed by a 7-year / 75,000-hour warranty.

Key Features:

• Size: 2-FT

• Voltage: 120-277V

• Wattage: 220W

• Lumen Output: 33,000 lm

• Efficacy: 150 lm/W

• Power Factor: >0.9

• THD: ≤20%

• CCT Options: 4000K, 5000K

• CRI: ≥80

• Dimming: 0-10V Continuous

• Lens: Anti-UV Micro-Filter Polycarbonate

• Rated Life: L70 @ 75,000 hrs

• Operating Temp: -4°F to 113°F (-20°C to 45°C)

• Mounting: V-Hook & Chain (Pendant/Surface Mount Optional)

• Controls: Optional Integrated Motion, Daylight, and Bi-Level Sensors w/ Remote

• Emergency: Optional 8W 90-Minute External Battery Backup

• IP Rating: IP40 Dry Location

• Certifications: UL, FCC, RoHS

• Warranty: 7 Years / 75,000 Hours

Ideal Applications:

• Warehouses and logistics centers

• Industrial manufacturing floors

• Gymnasiums and arenas

• Commercial and retail high-bay spaces

• Covered docks and dry storage areas
