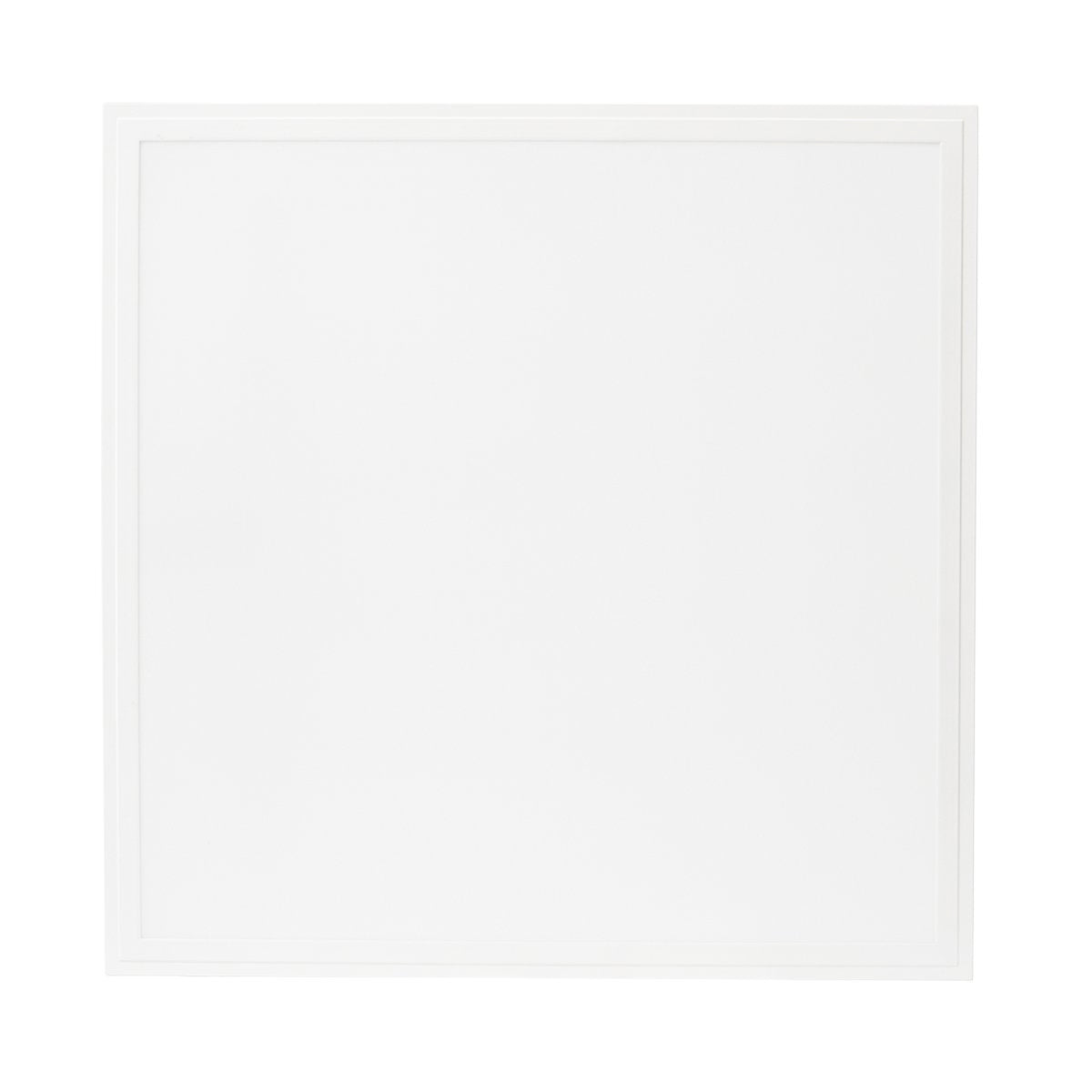

2×2 LED Tunable Back-Lit Flat Panel, 36W Max – FI DREAM PANEL Series

127 lm/W, 9-in-1 Tunable, 0-10V Dimmable, Damp Location Rated, Smart Sensor Ready (120-277V)

The FI-DPS-22-U-P from the FI DREAM PANEL Series is a high-performance 2×2 tunable LED back-lit flat panel that delivers up to 4590 lumens at only 36W, achieving an exceptional efficacy of 127 lm/W. Ideal for modern commercial spaces, this panel offers 9 total tuning combinations with 3 wattage options (20W, 30W, 36W) and 3 selectable CCTs (3500K, 4000K, 5000K), allowing unmatched flexibility in a single SKU.

The anti-UV frosted prismatic lens provides soft, uniform light output without glare or discoloration. The durable aluminum and steel construction ensures long-lasting performance in damp-rated environments and supports efficient thermal management with integrated wide heat sinks.

Engineered for flexibility, the fixture mounts easily in standard T-bar ceiling grids, with optional surface and cable suspension kits available. It’s 0-10V dimmable and smart control ready, allowing seamless integration into advanced lighting systems.

Fully certified and ENERGY STAR eligible, this panel also qualifies for most LED rebate programs and is backed by a 5-year / 50,000-hour warranty.

Key Features:

• Size: 2×2 FT

• Voltage: 120-277V

• Tunable Wattage: 20W / 30W / 36W

• Tunable CCT: 3500K / 4000K / 5000K

• Lumen Output: 2550 / 3825 / 4590

• Efficacy: 127 lm/W

• Power Factor: >0.9

• THD: ≤20%

• CRI: ≥80

• Dimming: 0-10V Continuous

• Rated Life: L70 @ 50,000 hrs

• Lens: Anti-UV Frosted Prismatic Polycarbonate

• Operating Temp: -4°F to 95°F (-20°C to 35°C)

• Certifications: UL, FCC, CE, RoHS, ENERGY STAR

• Mounting: T-Bar Ceiling (Surface & Suspension Kits Available)

• Rating: Damp Location

• Warranty: 5 Years / 50,000 Hours

Applications:

• Offices, schools, and retail spaces

• Lobbies, restrooms, and meeting rooms

• Healthcare, hospitality, and workstations
