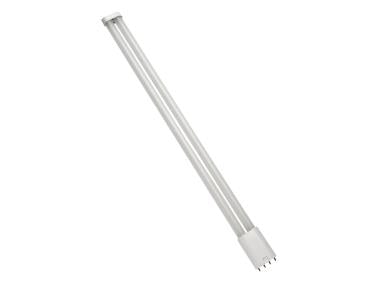

17W LED PLL Ballast Bypass Lamp – 5000K Daylight

Type B Bypass – 2200 Lumens – Coated Glass – 2G11 Base – 40W CFL Replacement

The 17PLLB50-CG delivers crisp 5000K daylight white illumination with outstanding efficiency. Designed for ballast bypass (Type B) installations, this 17W LED PLL lamp operates on 120–277V line voltage, producing 2200 lumens at an impressive 130 lm/W.

With its coated glass construction, the lamp ensures uniform light distribution while providing durability and glare reduction. Ideal for offices, classrooms, and commercial spaces looking to upgrade from outdated 40W CFL PLL lamps.

Specifications

• Model Number: 17PLLB50-CG

• Wattage: 17W

• Voltage: 120–277V

• Lumens: 2200 lm

• Color Temperature: 5000K (Daylight)

• CRI: ≥80

• Base Type: 2G11

• Efficacy: 130 lm/W

• Beam Angle: 120°

• Power Factor: 0.90

• Lumen Maintenance (L70): 50,000 hours

• Min. Ambient Temp: -4°F

• Max. Ambient Temp: 104°F

• Technology: Type B – Ballast Bypass

• Warranty: 5 Years

Key Features

• Bypass ballast for direct 120–277V wiring

• High-lumen output for optimal brightness

• Cool 5000K daylight ideal for task lighting and productivity

• Coated glass for consistent, even illumination

• Long 50,000-hour life reduces maintenance costs

• Suitable for retrofits in troffers, wraps, and linear fixtures
