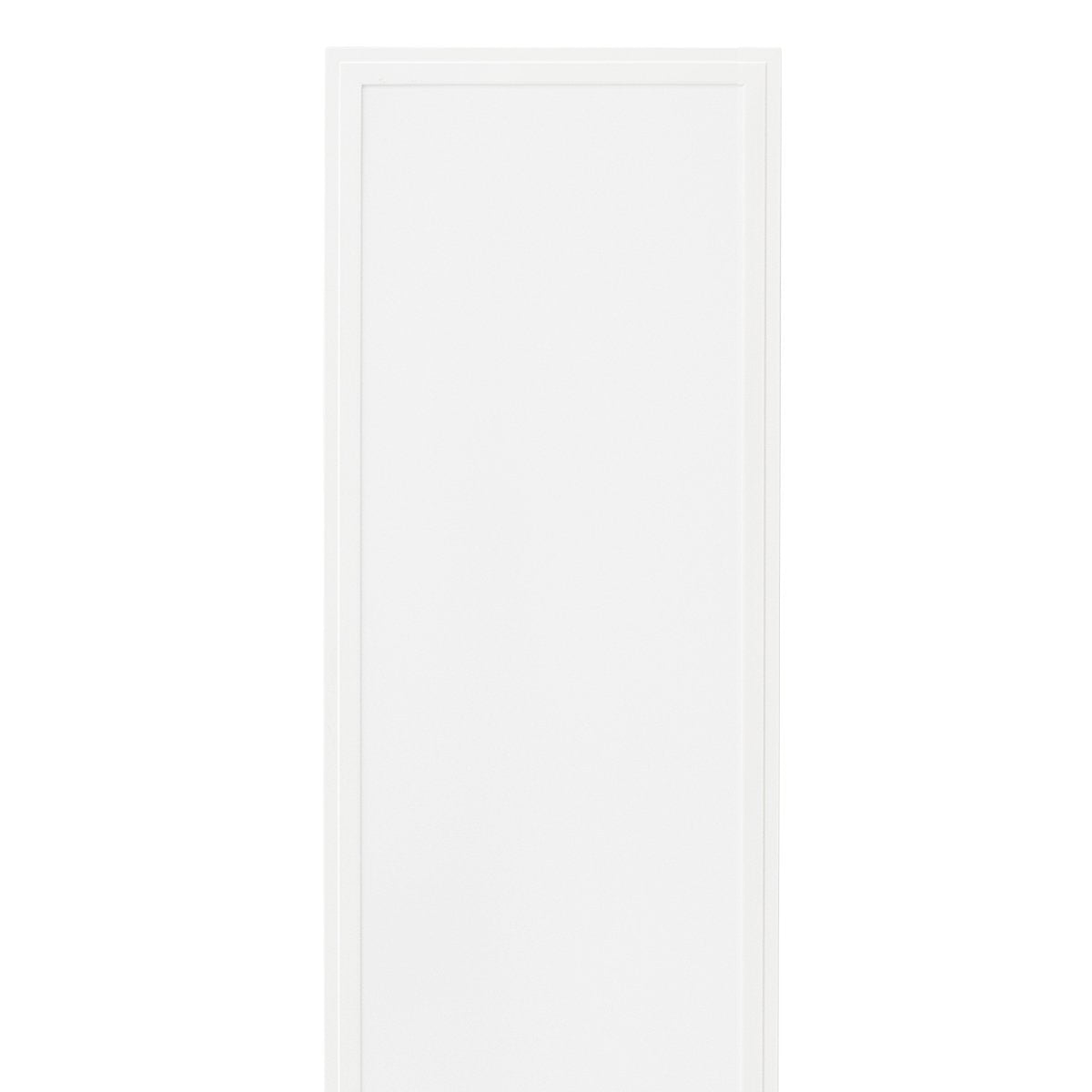

1×4 LED Back-Lit Flat Panel with Emergency Backup, 30W, 3825 Lumens – FI DREAM PANEL Series

130 lm/W, 0-10V Dimmable, Integrated 90-Min Emergency Battery, Anti-UV Frosted Lens, Damp Location Rated, Smart Sensor Ready (120-277V)

The FI-DP-14-U-P-30W-EL from the FI DREAM PANEL Series is a high-efficiency 1×4 LED Back-Lit Flat Panel featuring an integrated 90-minute emergency backup battery. Operating at 30W and delivering 3825 lumens, this fixture achieves an impressive efficacy of 130 lm/W—ideal for commercial indoor ceiling applications where energy savings and emergency lighting are key.

Engineered with an anti-UV frosted polycarbonate lens for uniform light distribution and long-lasting clarity. Its durable aluminum frame and steel backplate ensure maximum heat dissipation and resistance to corrosion, making it suitable for damp location environments.

Compatible with surface mount kits, cable suspension kits, and recessed T-grid ceilings, the panel is 0-10V dimmable and supports Smart Sensor integrations. Certified for performance and safety, this panel qualifies for most energy rebate programs and comes backed by a 5-year / 50,000-hour warranty.

Key Features:

• Size: 1×4 FT

• Voltage: 120-277V

• Wattage: 30W

• Lumen Output: 3825 lm

• Efficacy: 130 lm/W

• CCT Options: 3500K / 4000K / 5000K

• Dimming: 0-10V Continuous Dimming

• Power Factor: >0.9

• THD: ≤15%

• CRI: ≥82

• Rated Life: L70 @ 50,000 hrs

• Emergency: Integrated 90-Minute Battery Backup

• Mounting: Recessed T-Bar Ceiling (Surface + Suspension Kits Optional)

• Lens: Anti-UV Frosted Prismatic Polycarbonate

• Rating: Damp Location (Dry/Damp)

• Certifications: UL, FCC, CE, RoHS

• Warranty: 5 Years / 50,000 Hours

Applications:

• Offices, classrooms, and conference rooms

• Retail stores and commercial lobbies

• Healthcare and public buildings

• Hallways, workstations, restrooms, and breakrooms
