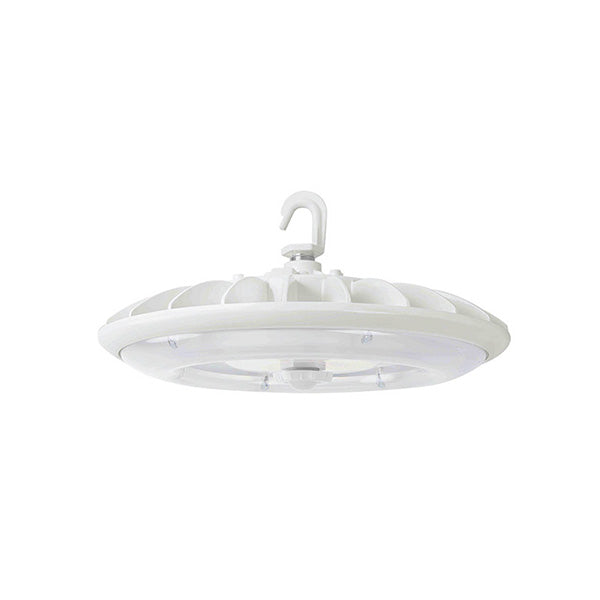

MHB02 Series 140W LED UFO High Bay – 136 lm/W, IP65, 0-10V Dimmable

High-Performance Indoor Luminaire for 25ft+ Ceilings – Smart Sensor Ready, 120-277V, 5-Year Warranty

The MHB02 Series 140W LED UFO High Bay is a premium indoor lighting solution designed for high-ceiling environments requiring powerful and efficient illumination. Delivering 19,100 lumens at 136 lumens per watt, this fixture ensures superior brightness with excellent energy savings. Ideal for spaces with mounting heights of 25 feet and above, the MHB02 is equipped with a standard hook mount for easy hanging, with optional ring and U-mount configurations available.

Built with a heavy-duty die-cast aluminum housing and finished in white with an anti-UV polyester coating, the MHB02 is IP65 rated for wet location performance and long-term durability. Its frosted polycarbonate lens ensures smooth, glare-free light distribution while resisting yellowing and UV damage.

Engineered for advanced lighting control, this high bay fixture is compatible with motion sensors, daylight harvesting, bi-level dimming, and programmable remote control functions—making it an ideal smart lighting upgrade for industrial or commercial applications. Operating across 120-277V with 0-10V dimming support, it performs reliably in extreme temperatures ranging from -40°F to 131°F.

Ideal Applications:
Perfect for warehouses, manufacturing plants, gymnasiums, storage facilities, packaging areas, aisles, and covered decks—any indoor space requiring efficient, high-mounted illumination.

Key Features:

• 19,100 lumens at 140W (136 lm/W)

• 0-10V Dimmable Driver (120-277V)

• Smart Sensor Ready (PIR, Bi-Level, Daylight)

• Anti-UV Frosted Polycarbonate Lens for Even Light Output

• Hook Mount Standard; Ring and U-Mount Options Available

• Durable Die-Cast Aluminum Housing, White Finish

• IP65 Rated for Wet Locations

• UL, FCC, CE, and RoHS Compliant

• 5-Year / 50,000-Hour Warranty
